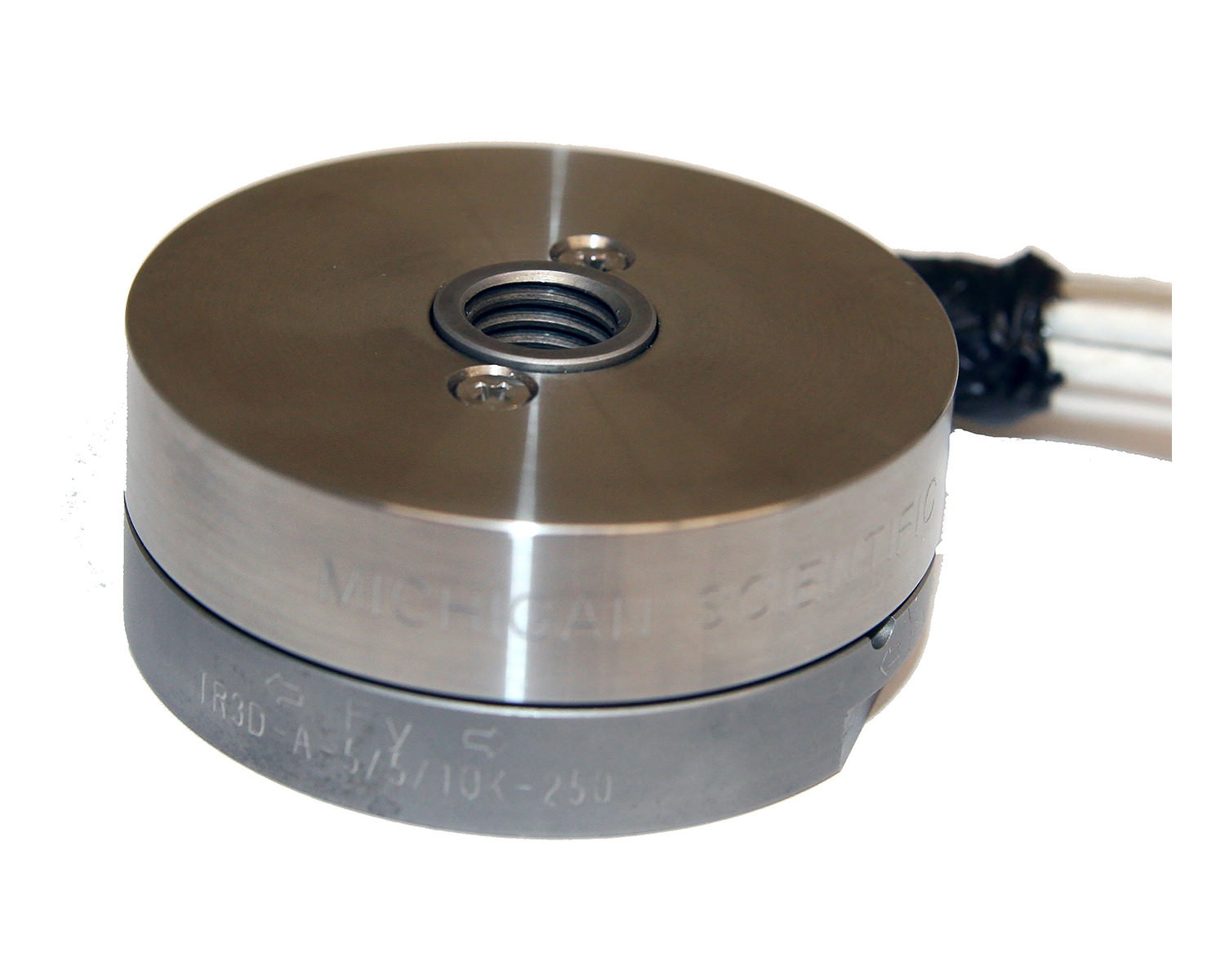

Model TR3D-A-* Round Three Axis Load Cell

Features

  • 1,000 lb, 3,000 lb, 5,000 and 10,000 lb capacities
  • Measures forces in three perpendicular directions
  • Environmentally protected
  • Temperature compensated
  • Rugged construction

Description

Michigan Scientific’s TR3D-A-* Round Three Axis Load Cells measure forces and loads in three perpendicular directions. Available in 1,000 lb, 3,000 lb, 5,000 and 10,000 lb capacities, these compact transducers are well suited for an unlimited variety of applications.

The 3K, 5K and 5/5/10K models are made of high grade stainless steel material. The 1K model is made of high grade aluminum. These materials combine to provide excellent resistance to corrosion and environmental conditions. A weatherproof seal keeps dust and elements out of the unit. Temperature compensation of the transducers ensure stable output throughout a wide temperature range. In addition, the transducers are configured for easy adaptation to a variety of applications.

Documents

Icon

TR3D-A-* Datasheet

Round Three Directional Load Cell ...
Icon

Load Cell Brochure

Load Cells Brochure ...
Icon

TR3D-A-1K CAD

TR3D-A-1K CAD  Package Information and Contents | 1,000 lb Capacity ...
Icon

TR3D-A-3K CAD

TR3D-A-3K CAD  Package Information and Contents | 3,000 lb Capacity ...
Icon

TR3D-A-5K CAD

TR3D-A-5K CAD  Package Information and Contents | 5,000 lb Capacity ...
Icon

TR3D-A-5K/5K/10K CAD

TR3D-A-5K/5K/10K CAD ...
Tech Notes
Icon

Tech Note 104 | Measurement of Total Load Using Strain Gage Based Transducers in Parallel

Measurement of Total Load Using Strain Gage Based Transducers in Parallel ...
Icon

Tech Note 105 | Strain Gage Output in Response to Free Thermal Expansion, Non-Thermal Stress, and Thermal Stress

Strain Gage Output in Response to Free Thermal Expansion, Non-Thermal Stress, and...
