PTO Telemetry Transducer

Features

  • Sense torque and speed of PTO shaft
  • Integrated telemetry transmits strain gauge signals
  • Calibrated
  • Fits standard spline types
  • Rugged construction

Description

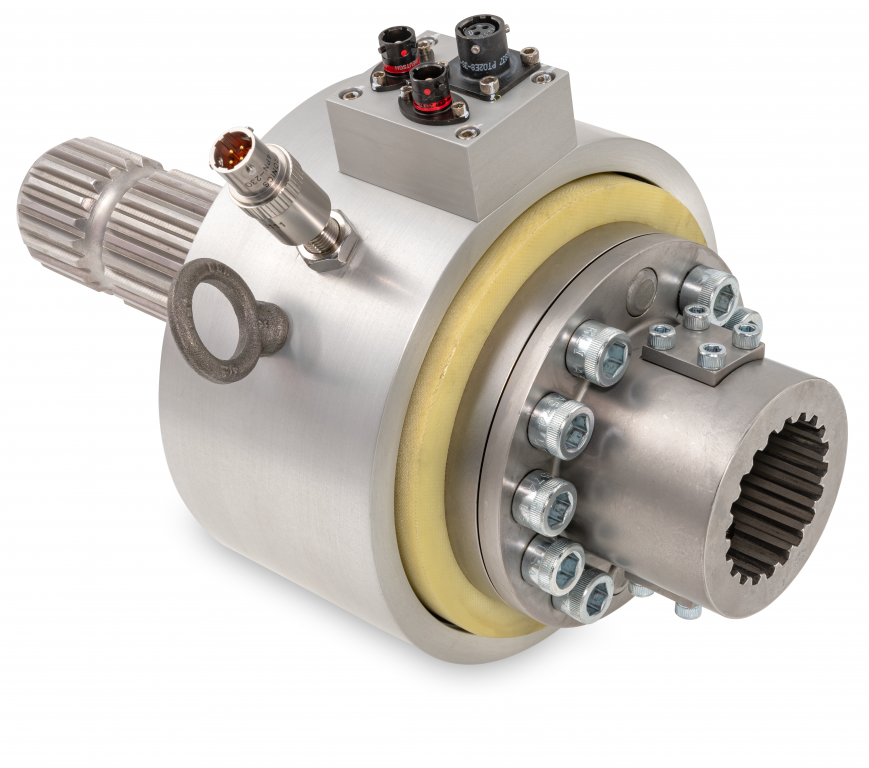

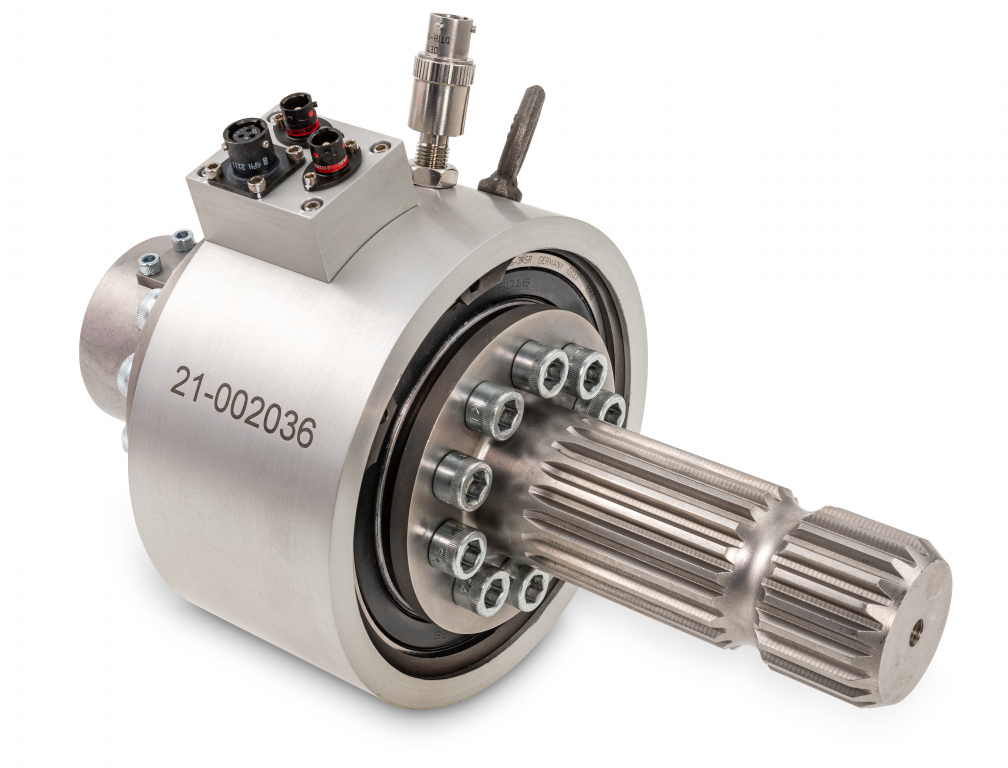

The Michigan Scientific PTO Telemetry Transducer is designed to measure the torque and speed of a power take-off (PTO) shaft. The transducer has an integrated, two channel telemetry and encoder system. The strain gauge signals are transmitted through the telemetry while a hall effect sensor provides the speed signals.

The telemetry transmitter provides excitation to the strain gauges, amplifies, digitizes, and transmits the force and moment signals via radio frequency. The telemetry and induction housing is attached to each transducer and contains the telemetry transmitter, induction regulator, and secondary induction coils. It can fit the agriculture standard spline types; Type 1, 2, and 3.

This transducer is ideal for monitoring PTO shaft power for efficiency measurement and analysis. It is crucial for developing a tractor’s transmission.
